- [SMOOTH OPERATION] The 21.5T sensored brushless motor ensures smooth and efficient operation, allowing you to enjoy precise control and responsiveness while driving your RC car.
- [ENHANCED DRIVING EXPERIENCE] Experience improved acceleration and speed with the strong and stable output power of the motor. Enhance your racing performance on the track.
- [DURABLE CONSTRUCTION] With a CNC machined billet aluminum can and strong sintered neodymium magnet, this motor is built to last through intense RC car races and competitions.
- [OPTIMIZED HEAT DISSIPATION] The aluminum tail cover and ultra-low internal resistance help reduce the motor's operating temperature, ensuring efficient heat dissipation and prolonged motor life.
- [VERSATILE COMPATIBILITY] The motor features adjustable timing, dual sensor ports, and is compatible with any sensored and sensorless ESC. Enjoy hassle-free compatibility and easy integration with your existing setup.
1. Reliable Performance: Using high speed accuracy bearings. High purity copper windings maximize electrical conductivity. High Power Solder Tabs. Removable and Replaceable Rotor.
2. Protecting Internal Parts: CNC machined billet aluminum can, strong sintered neodymium magnet, the outer shell can effectively protect the internal parts.
3. and Output Power: 540 V3 sensored brushless motor has strong and stable output power, can improve the overall performance of the RC car.
4. Heat Dissipation: Aluminum tail cover. Ultra low internal resistance, reduce motor operating temperature, optimize heat dissipation efficiency, and adjust disassembly time.
5. Compatible With: Adjustable timing, dual sensor ports, accuracy engineered for maximum energy conversion, compatible with any sensored and sensorless ESC.
6. Applicable Model: 540 V3 21.5T sensored brushless motor is suitable for 1/10 1/12 remote control off road, drift car, providing you great using experience.
Specification:

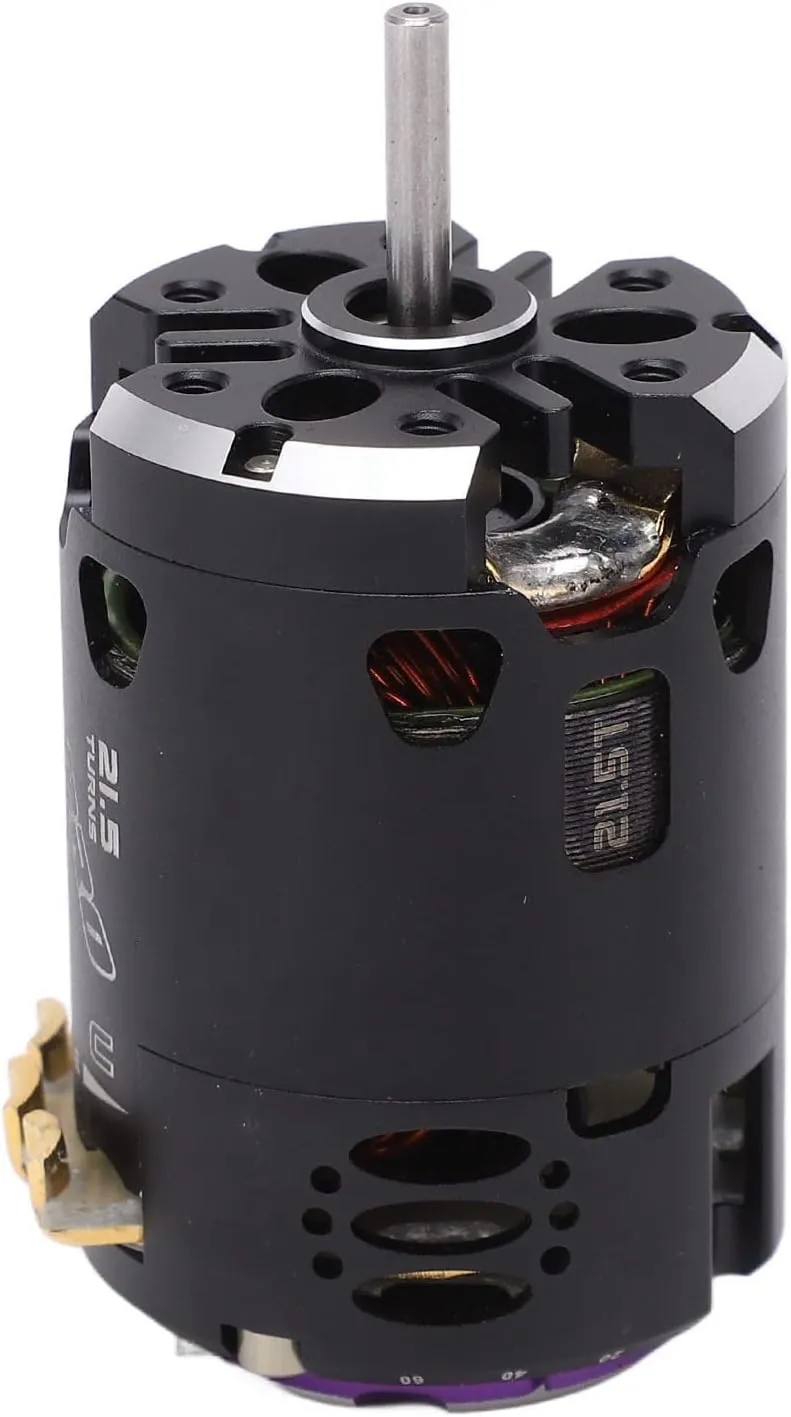

Item Type: 540 V3 Sensored Brushless Motor
Model: 540 V3
Material: Aluminum Alloy, Copper
Color: Black Purple
Weight: Approx. 189g / 6.7oz
KV (RPM/Volt): 1850KV
Output Power: 100W
General Lithium Battery: 1-3S
Maximum Current: 28A
Number of Motor Poles: 2
No Load Current: 7.4V, 0.9A
Resistance (Ω): 0.0595
Motor T Number: 21.5T
Product Size:
Motor Diameter: Approx. 35.8mm / 1.4in
Motor Length: Approx. 54mm / 2.1in (without shaft)
Shaft Diameter: Approx. 3.175mm / 0.1in
Shaft Length: Approx. 14.5mm / 0.6in
Rotor Size: Approx. 12.5x7.2mm / 0.5x0.3in
Application: Suitable for 1/10 1/12 RC Off Road, Drift Car
packing list:
1 x Sensored Brushless Motor
1 x Induction Wire
1 x Manual
Note:
1. Please allow 1‑3mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
