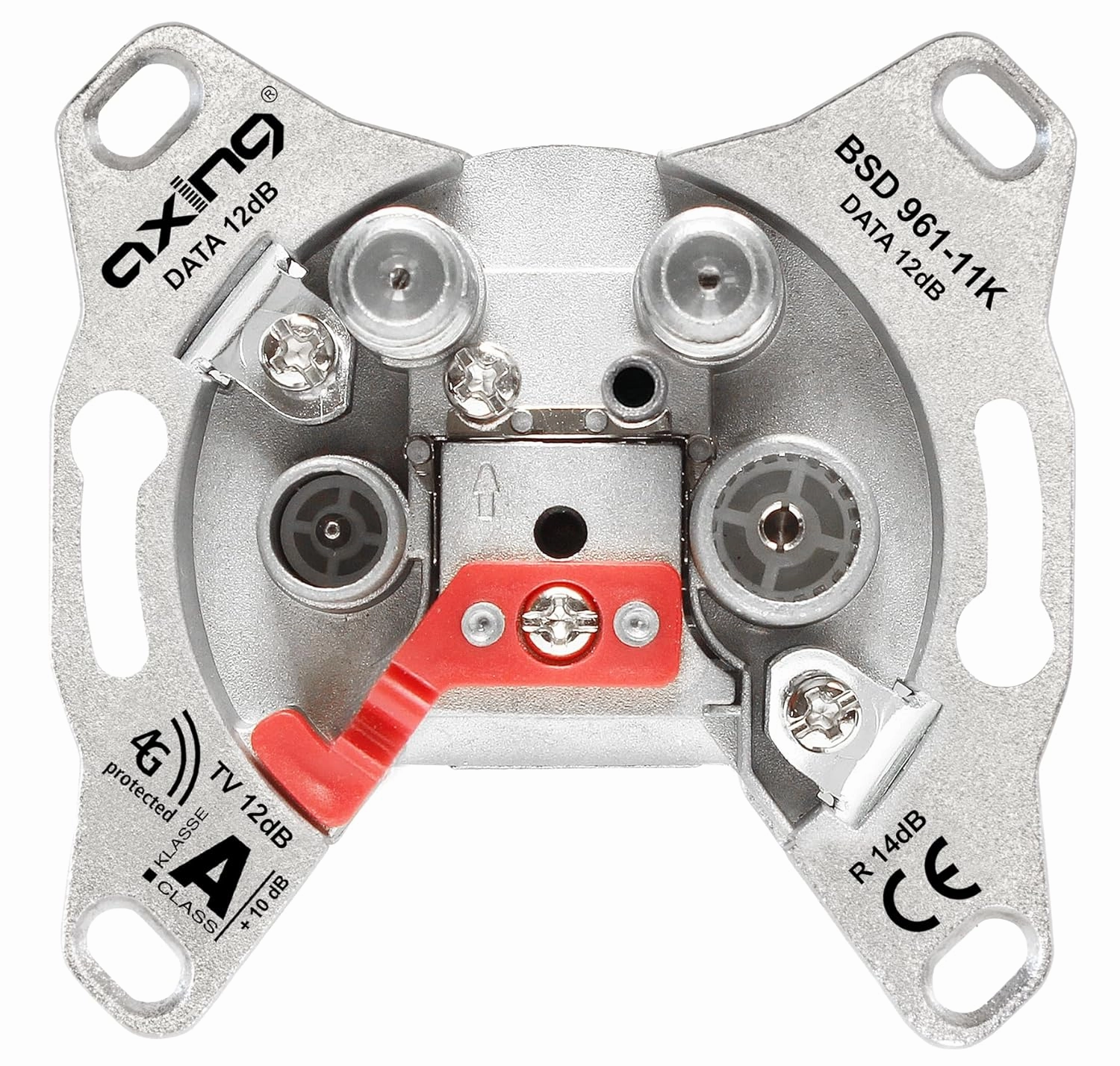

- Multimedia end box with 12 dB connection attenuation (FM radio 14 dB), built-in terminating resistor for use as a last box of a row distribution or single socket
- For connecting cable modem, cable router, interactive receiver, Horizon box to the data ports as well as TV, cable receiver, radio to the coaxial outputs
- Frequency range: 2 x DATA 5-1006 MHz (F connectors), TV 109-1006 MHz (IEC plug), radio 87.5-108 MHz (IEC socket)
- Easy to install thanks to highly flexible connection cover, integrated strain relief, kink protection thanks to rounded cable feed, suitable for all standard switch ranges
- High-quality nitine coating for increased screening factor class A 10 dB suppresses interference effectively, can be used in all cable networks e.g. Unitymedia, Vodafone cable Germany
With this 4-port multimedia socket you have enough outputs for all terminal devices on the cable connection. The two data ports allow you to connect an interactive set-top box (e.g. Horizon Box) and a cable modem or cable router. Other outputs are used for TV and radio. The socket takes into account the latest specifications of the major cable network operators. The shielding ratio is even improved by 10 dB compared to class A - thanks to high-quality nitine coating. This effectively suppresses interference signals from mobile radio and LTE. This end box is used as a final box in a row distribution and has a built-in terminating resistor. The premium-line box allows quick and secure installation in flush-mounted or hollow wall boxes, with additional surface-mounted frame almost anywhere. For convenient access during cable installation, the connector cover is highly flexible and can be opened wide. The cable feed is rounded, which protects against unwanted kinking of the coaxial cable. The outer sheath is clamped in place and thus maintains secure strain relief. The inner conductor is also clamped and thus remains intact - unlike screws. All Axing premium-line boxes have the same stripping size of 8/13 mm, the corresponding BWZ 5-02 stripping tool is also offered separately. The use of this high-quality antenna socket ensures a future-proof and state-of-the-art installation. Can be used for almost all coaxial cables (0.63 - 1.13 mm diameter inner conductor, 4.70 - 7.35 mm outer diameter).
- Is Discontinued By Manufacturer : No
- Product Dimensions : 1.5 x 2.64 x 2.64 inches; 3.53 ounces
- Date First Available : May 17, 2018
- Manufacturer : Axing
